Zen Pergolas DIY Freestanding Pergola Bracket Kit, Frame Only | Steel Brackets for 4x4 or 6x6 Lumber | Up to 24' x 24'
Zen Pergolas DIY Freestanding Pergola Bracket Kit, Frame Only | Steel Brackets for 4x4 or 6x6 Lumber | Up to 24' x 24'
Couldn't load pickup availability
Add White-Glove Backyard Placement — a local two-person crew uncrates your item, carries it to your spot, places it, and hauls the packaging away. Placement $279 · Placement + Assembly $489. Hot tubs and saunas are quoted individually.
Share

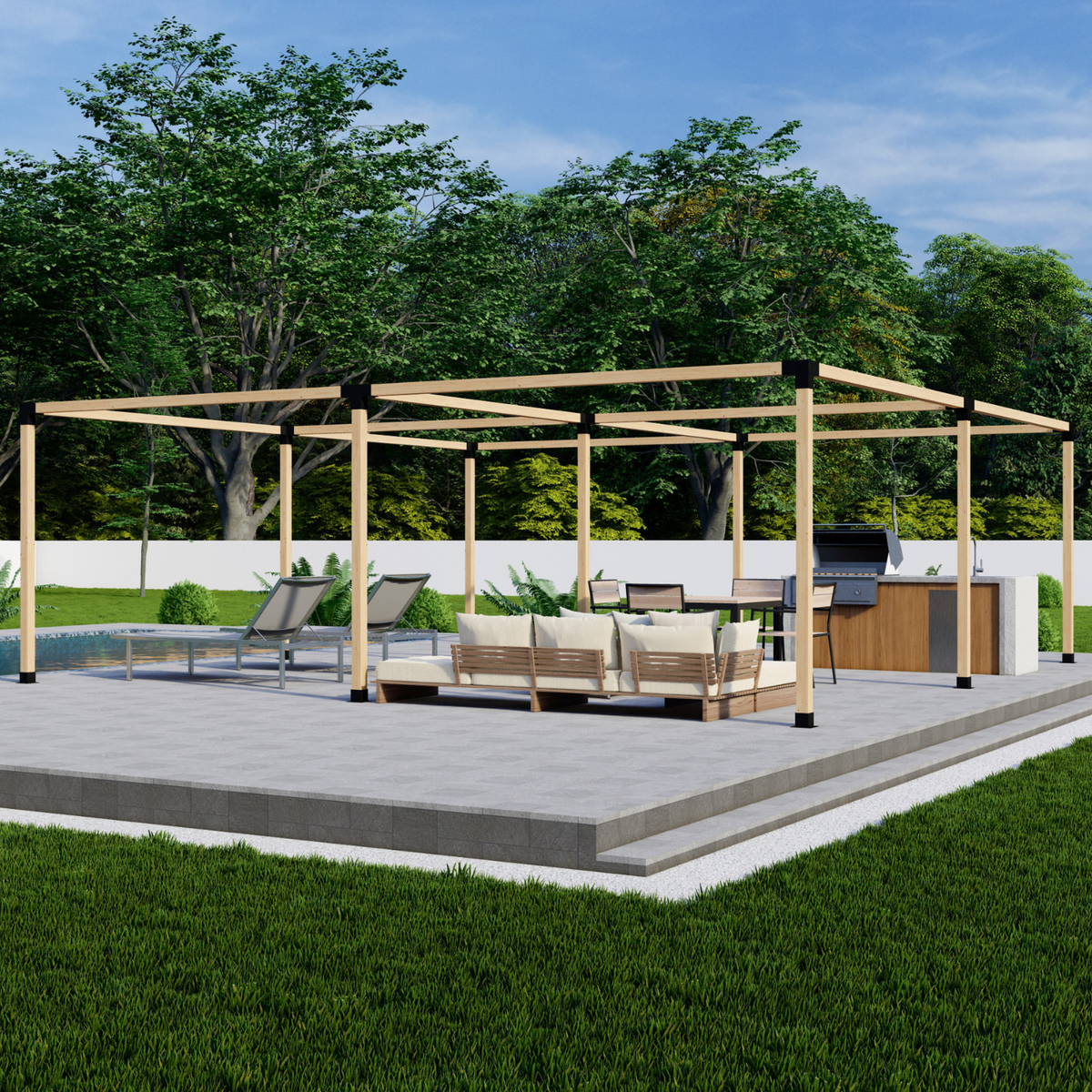

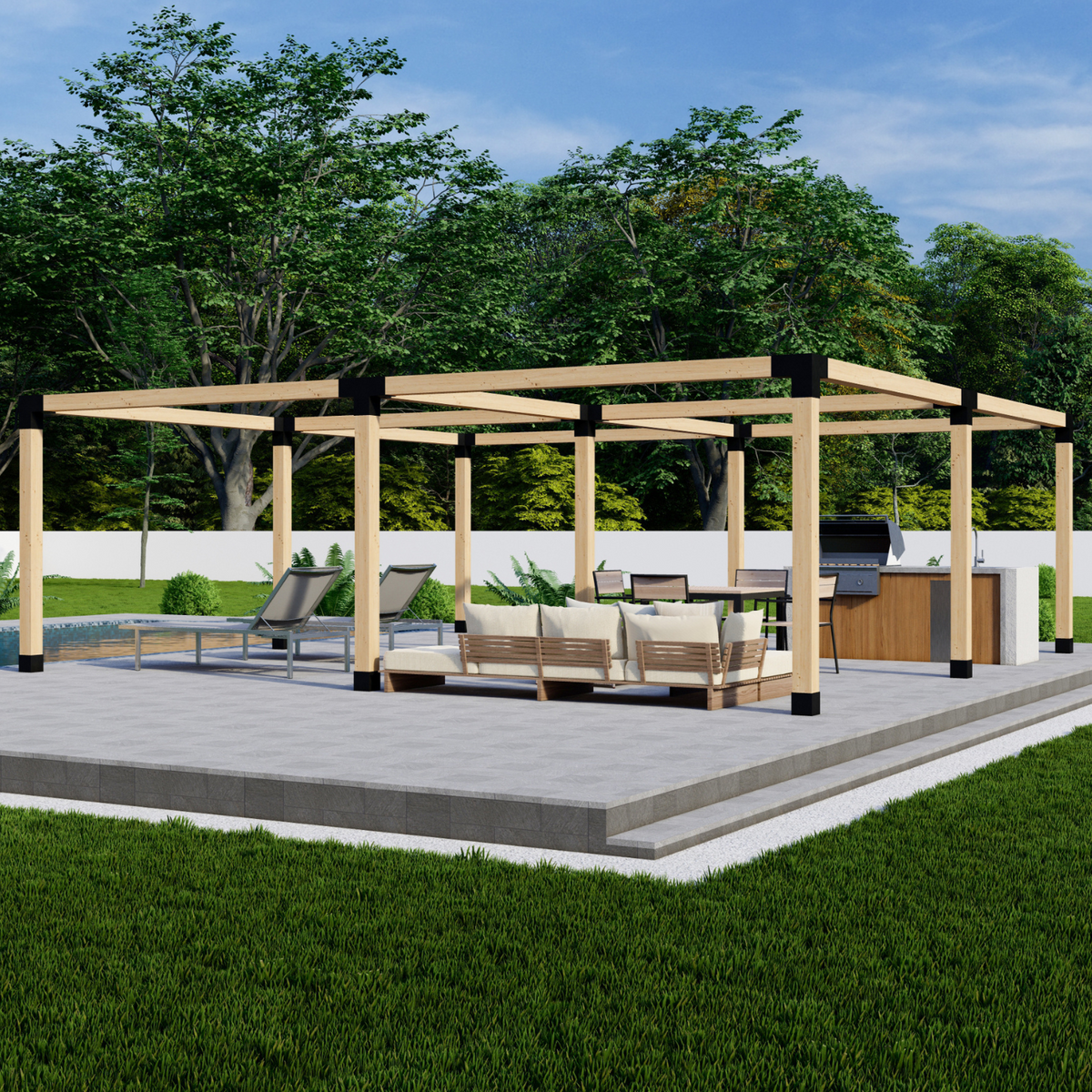

Build the frame first and decide the roof later. This Zen Pergolas bracket kit assembles a freestanding pergola frame on 9 posts across 4 blocks, at any size up to 24' x 24', with no roof brackets included — the frame-only option for builders who want the structure in place before choosing a roof style. Choose brackets for 4x4 or 6x6 lumber and supply your own wood.
Why Customers Choose This Product
- Complete frame bracket kit for a 4-block freestanding pergola with 9 posts
- Frame-only configuration — build the structure now, choose a roof style separately
- Your choice of 4x4 or 6x6 bracket sizes
- Stainless steel #12 wood screws included in the kit
- Laser-cut, laser-welded steel with a weather coating and pre-drilled holes
- Backed by a 5-year warranty on all brackets
Product Highlights
Freestanding 4-Block Frame
Nine posts and a central 5-arm bracket carry a large frame at any footprint up to 24' x 24', with no house attachment.
Frame Only, by Design
This kit contains post and beam connectors only — no rafter or slat brackets — so the roof style stays your choice.
Two Lumber Sizes
Order the kit for 4x4 posts, or step up to 6x6 posts for a heavier frame.
Steel, Cut and Welded Precisely
Brackets are laser-cut and laser-welded, made with 12-gauge steel in the 6x6 size or 14-gauge steel in the other sizes, with a weather coating for outdoor conditions.
Specifications
| Brand | Zen Pergolas |
|---|---|
| Product Type | DIY pergola bracket kit, frame only |
| Pergola Type | Freestanding, 9 posts |
| Layout | 4 blocks |
| Maximum Size | Any size up to 24' x 24' |
| Bracket Size Options | 4x4, or 6x6 |
| Roof Style | Frame only (no roof) |

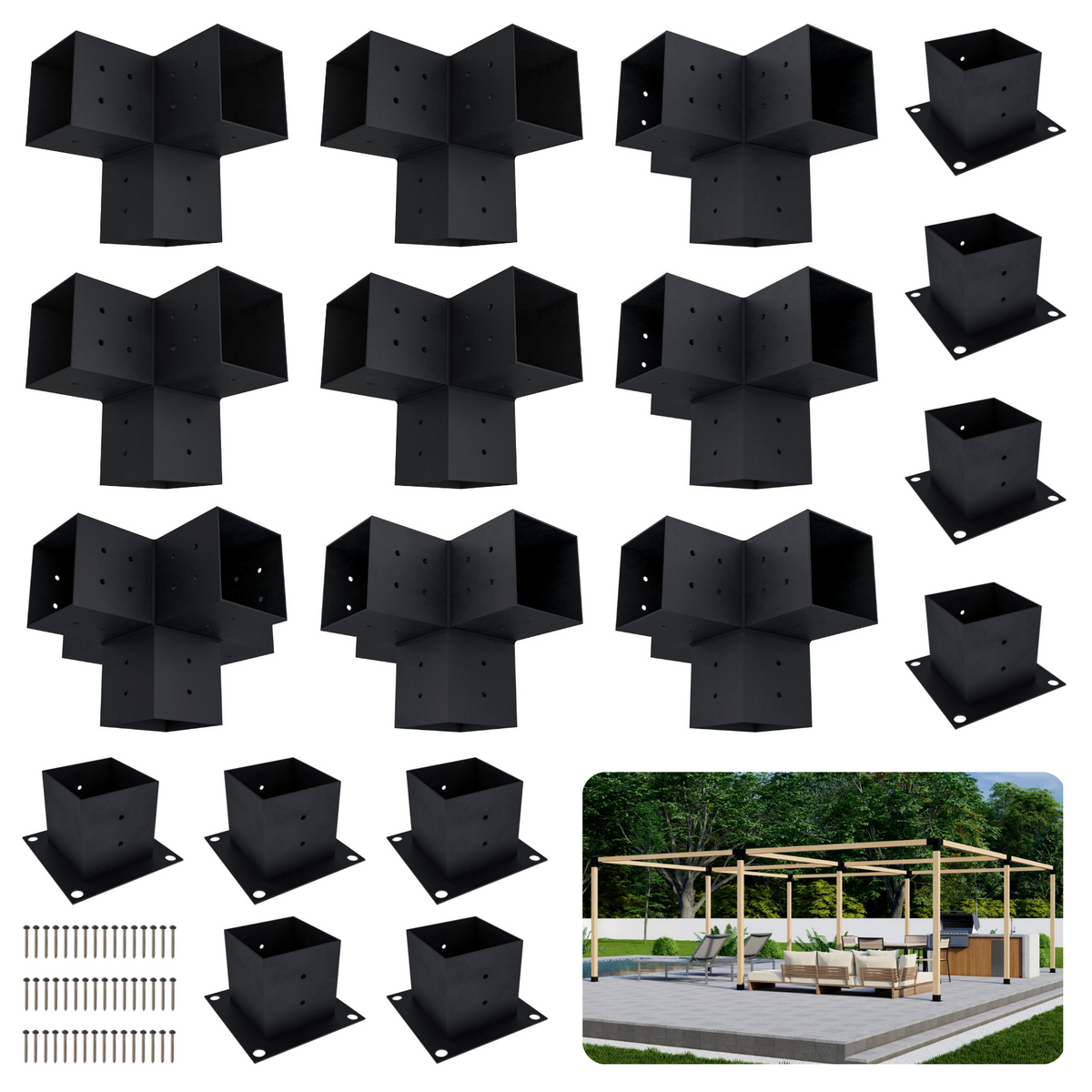

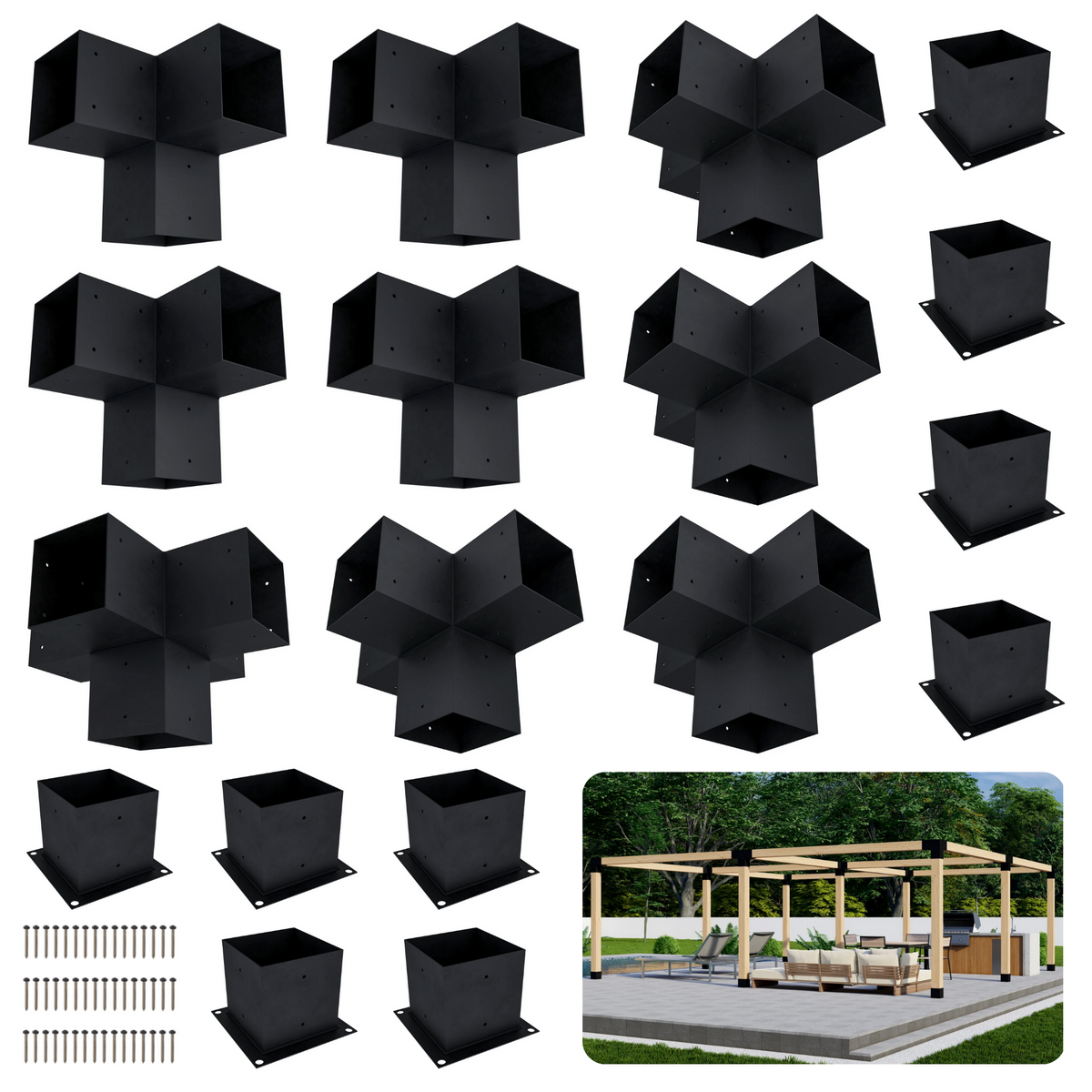

| Kit Includes | 9 post base brackets, 4 corner 3-arm brackets, 4 middle 4-arm brackets, 1 central 5-arm bracket, stainless steel #12 wood screws |
| Not Included | Lumber and anchoring hardware (purchased locally); roof brackets are not part of this kit |
| Bracket Material | 12-gauge steel (6x6 size) or 14-gauge steel (all other sizes), laser-cut and laser-welded, weather coating, pre-drilled holes |
| Warranty | 5-year warranty on all brackets |
| Ships From | Boise, Idaho |
Ideal For
- Builders who want the pergola frame up now and the roof decided later
- Large patios and yards that suit a 24' x 24' footprint on 9 posts
- Projects pairing a frame with a separately chosen roof treatment
- Builders choosing between standard 4x4 and heavier 6x6 lumber
Important Information
Lumber and anchoring hardware are not included and will need to be purchased locally. The stainless steel #12 wood screws are included in the kit.
This is a frame-only kit: it does not include roof rafter or roof slat brackets. Anchor the post base brackets to a solid foundation, and check local building codes and permit requirements before you build.
Frequently Asked Questions
Is lumber included in this kit?
No. Lumber and anchoring hardware are purchased locally. The kit includes all of the brackets listed in the specifications and the stainless steel #12 wood screws.
What does frame only mean?
The kit builds the pergola frame — posts and beams — and does not include a roof. Roof rafter and roof slat brackets are not part of this kit, so you can choose the roof style separately.
What size pergola can I build with this kit?
The kit builds a freestanding frame in a 4-block layout with 9 posts, at any size up to 24' x 24'.
Which bracket size should I choose?
Choose 4x4 brackets for 4x4 posts or 6x6 brackets for 6x6 posts. The brackets are made to fit these common lumber sizes.
Are the brackets covered by a warranty?
Yes. All brackets are backed by a 5-year warranty.
If the plan starts with a solid frame at full size, this kit supplies the hardware to build it. Pick your lumber size and start framing.
