Build a pergola that ties straight into your house, with real shade included. This Zen Pergolas kit builds an attached layout on 6 posts across 4 blocks at any size up to 24' x 24', topped with four HDPE shade canopies that block up to 95% of UV rays. Choose brackets for 4x4 or 6x6 lumber, supply your own wood, and the steel connectors and canopies do the rest.
Why Customers Choose This Product
- Complete kit for a 4-block attached pergola with 6 posts
- Four shade canopies included, in your choice of 6 sizes from 8' x 8' to 12' x 12'
- Canopy fabric is fade-resistant 180 GSM HDPE that blocks up to 95% of UV rays
- Semi-permeable canopy lets rain pass through instead of pooling on top
- Your choice of 4x4 or 6x6 bracket sizes, with stainless steel #12 wood screws included
- Backed by a 5-year warranty on brackets and a 1-year warranty on shade canopies
Product Highlights

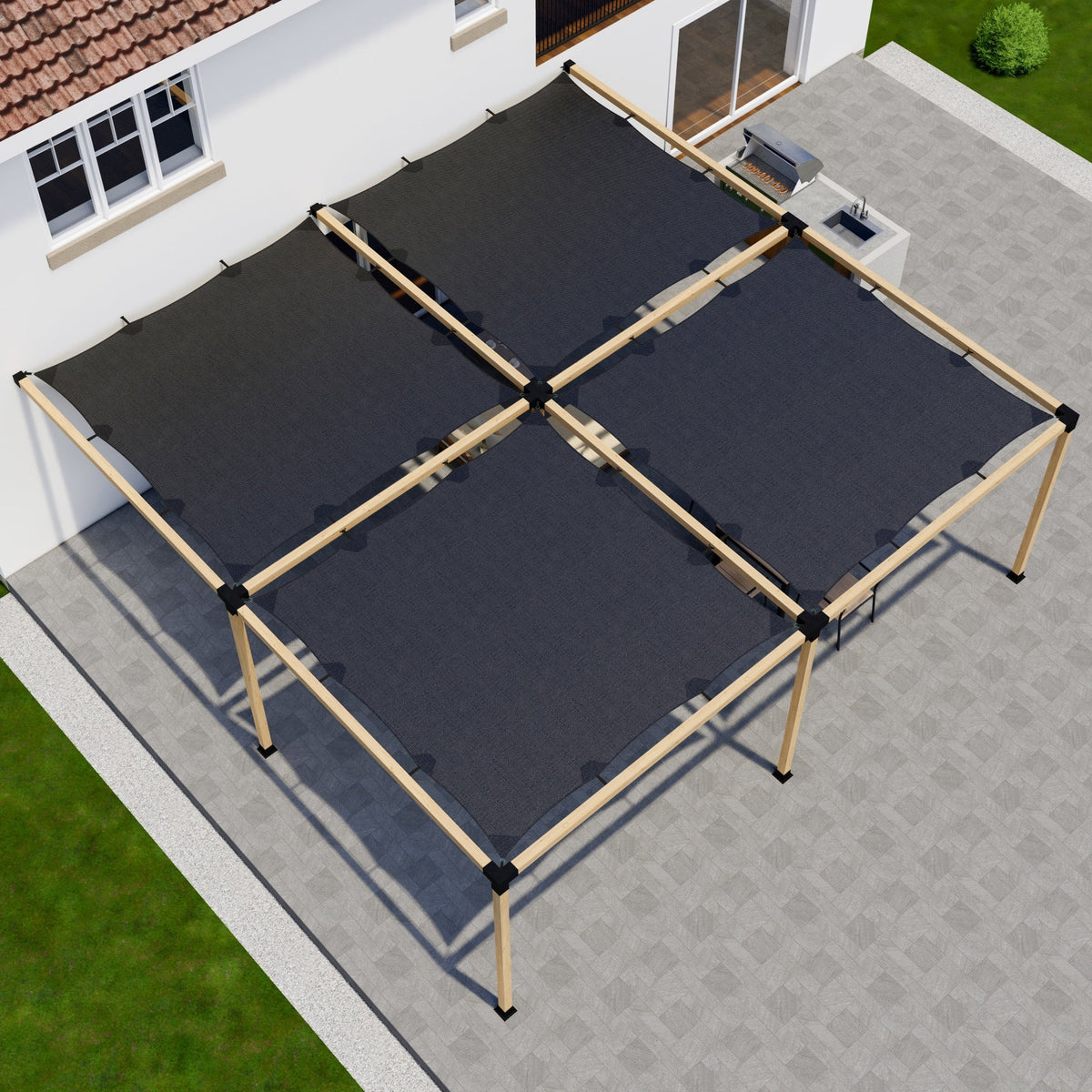

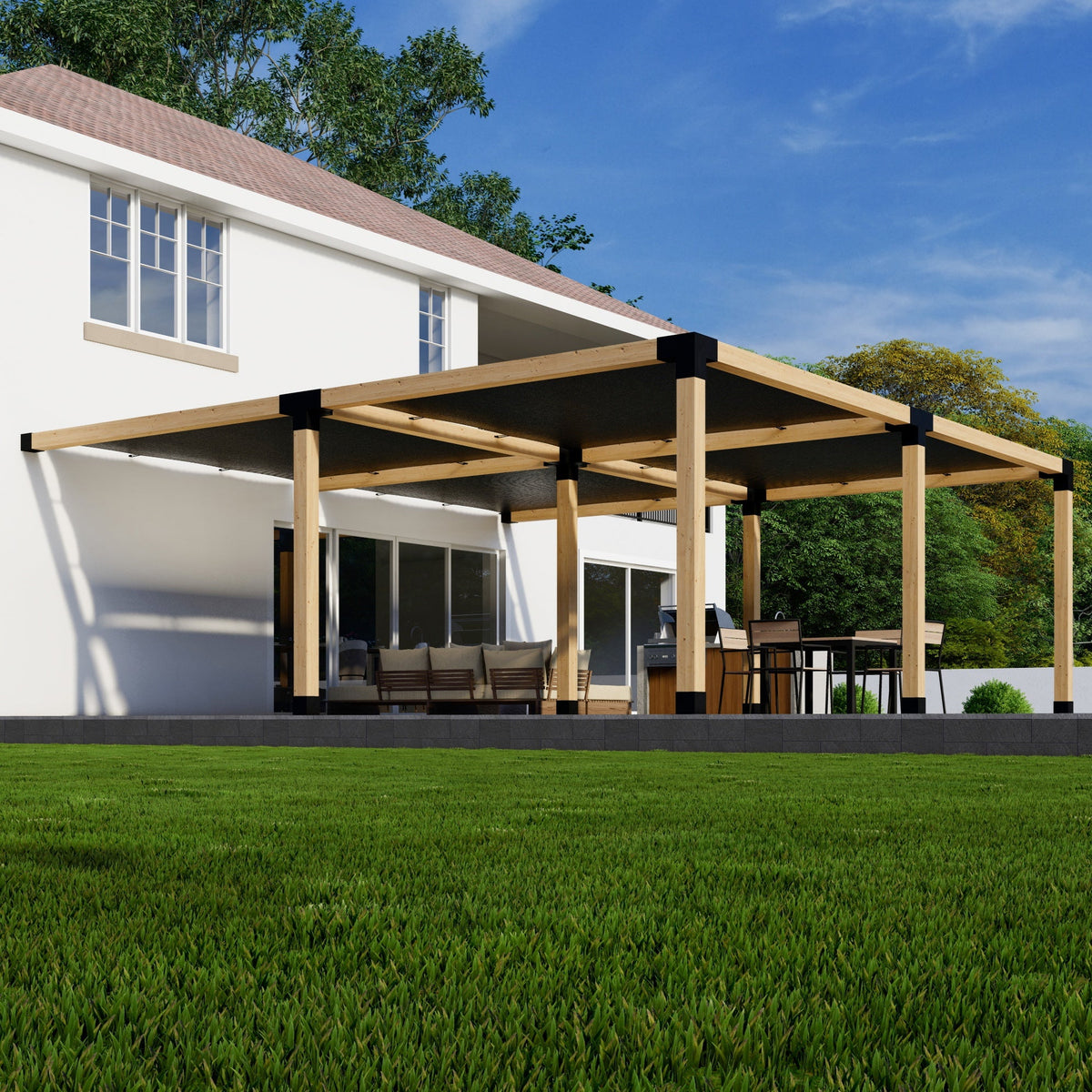

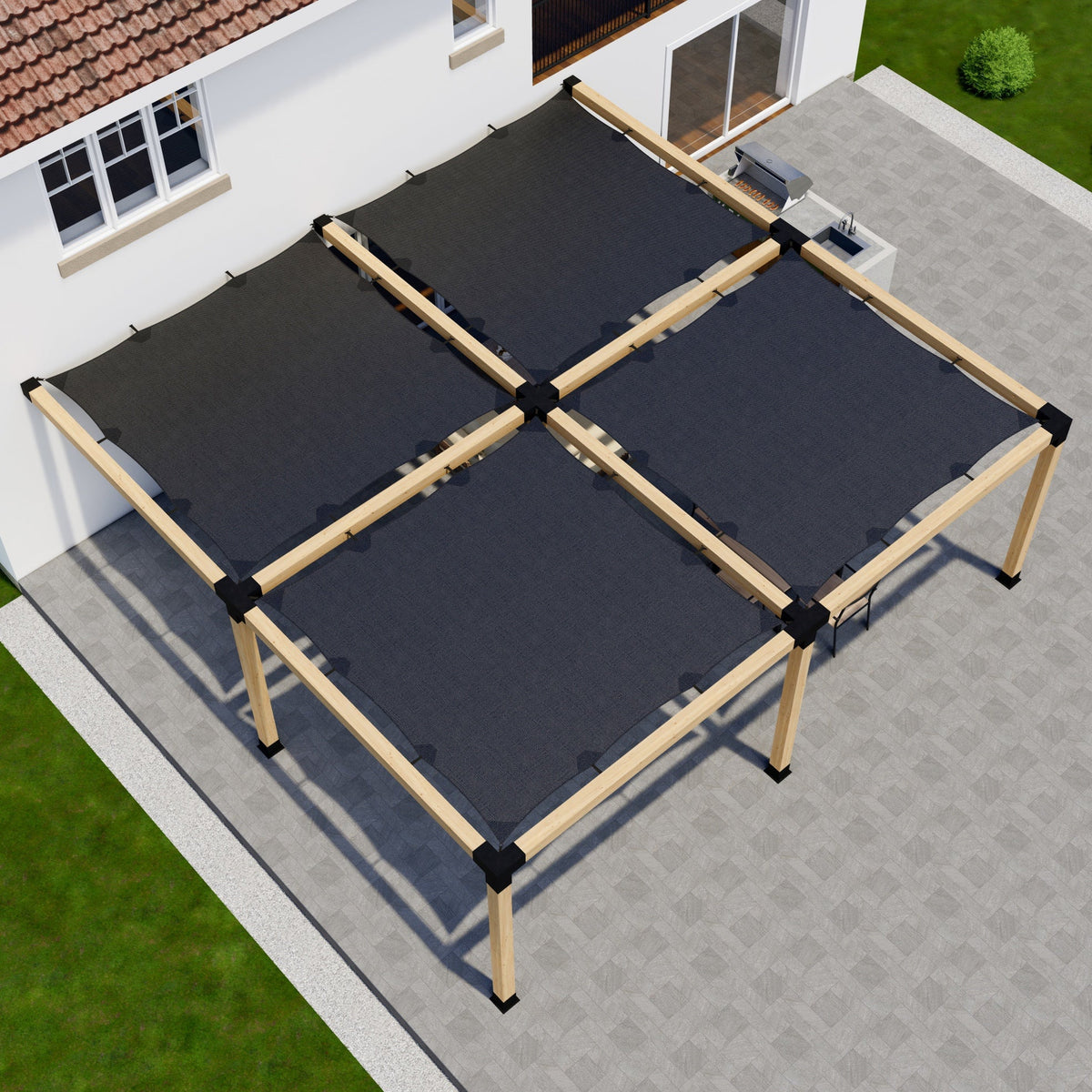

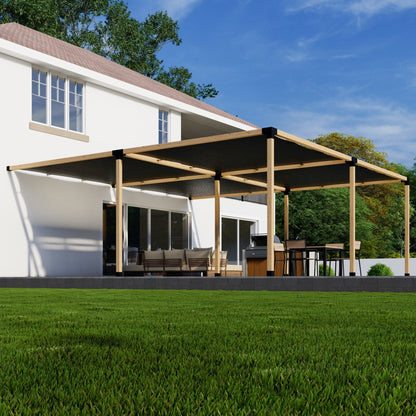

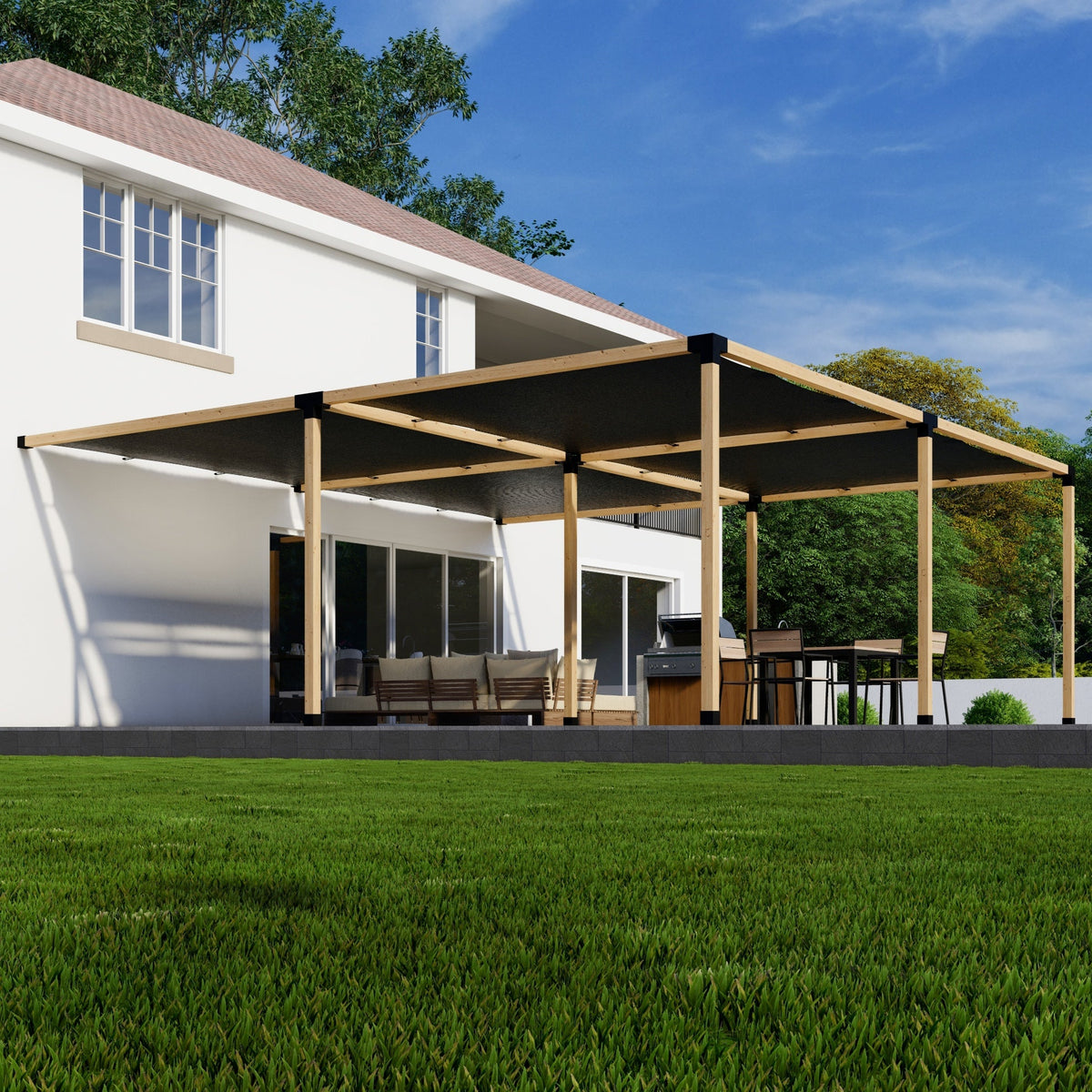

Attached 4-Block Layout
Three wall mount brackets tie the pergola to the house while 6 posts carry the outer structure, at any footprint up to 24' x 24'.
Four HDPE Shade Canopies
The kit includes 4 shade canopies with mounting brackets. The knitted 180 GSM high-density polyethylene fabric is fade-resistant and blocks up to 95% of UV rays.
Straps Keep It Tight
Each canopy side has 4 straps that secure to the corner brackets and roof beams, keeping the fabric tight and preventing drooping.
Steel, Cut and Welded Precisely
Brackets are laser-cut and laser-welded, made with 12-gauge steel in the 6x6 size or 14-gauge steel in the 4x4 size, with a premium weather coating and pre-drilled holes.
Specifications
| Brand | Zen Pergolas |
|---|---|
| Product Type | DIY pergola kit with shade canopies |
| Pergola Type | Attached to house, 6 posts |
| Layout | 4 blocks |
| Maximum Size | Any size up to 24' x 24' |
| Bracket Size Options | 4x4, or 6x6 |
| Roof Style | Shade canopies (8' x 8' to 12' x 12') |

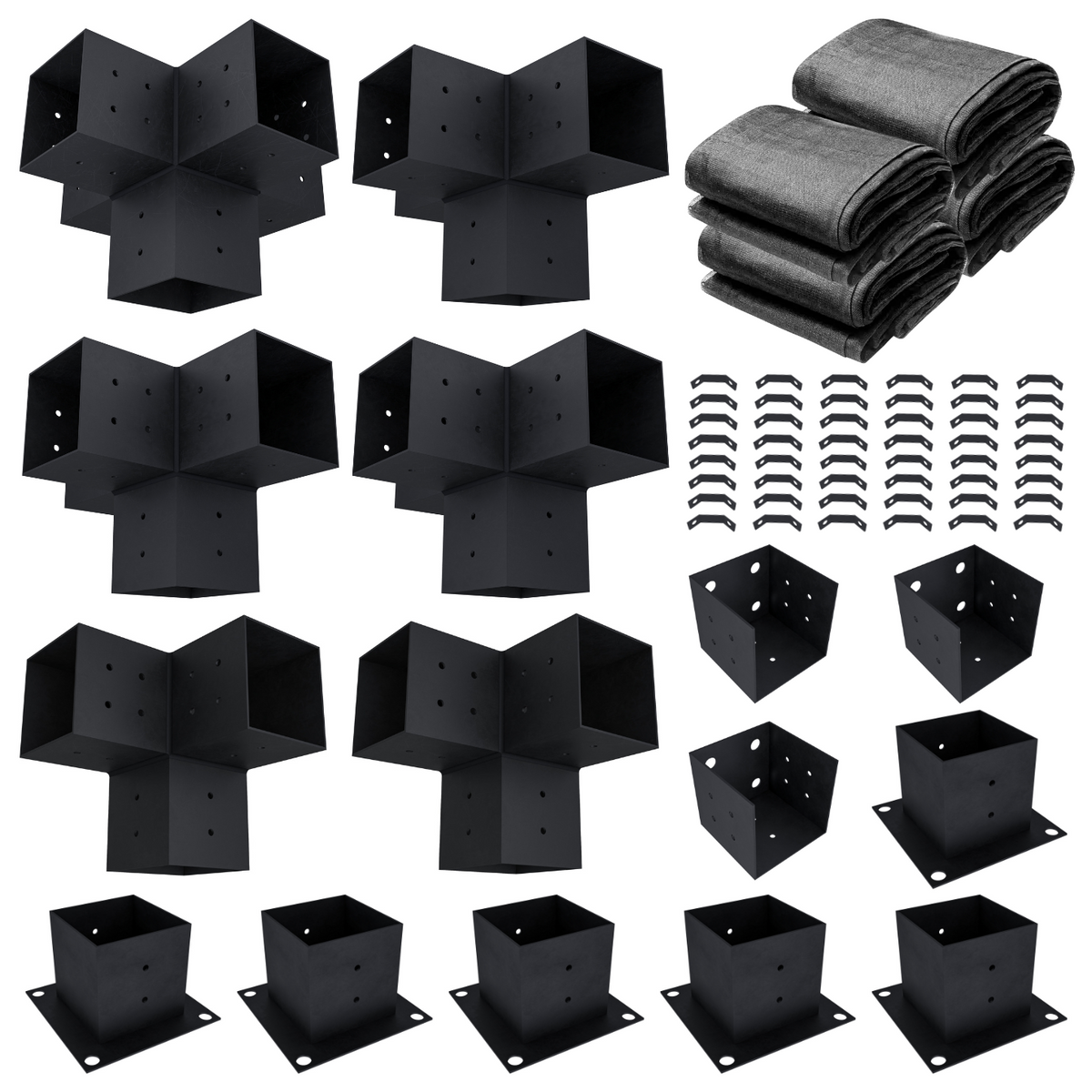

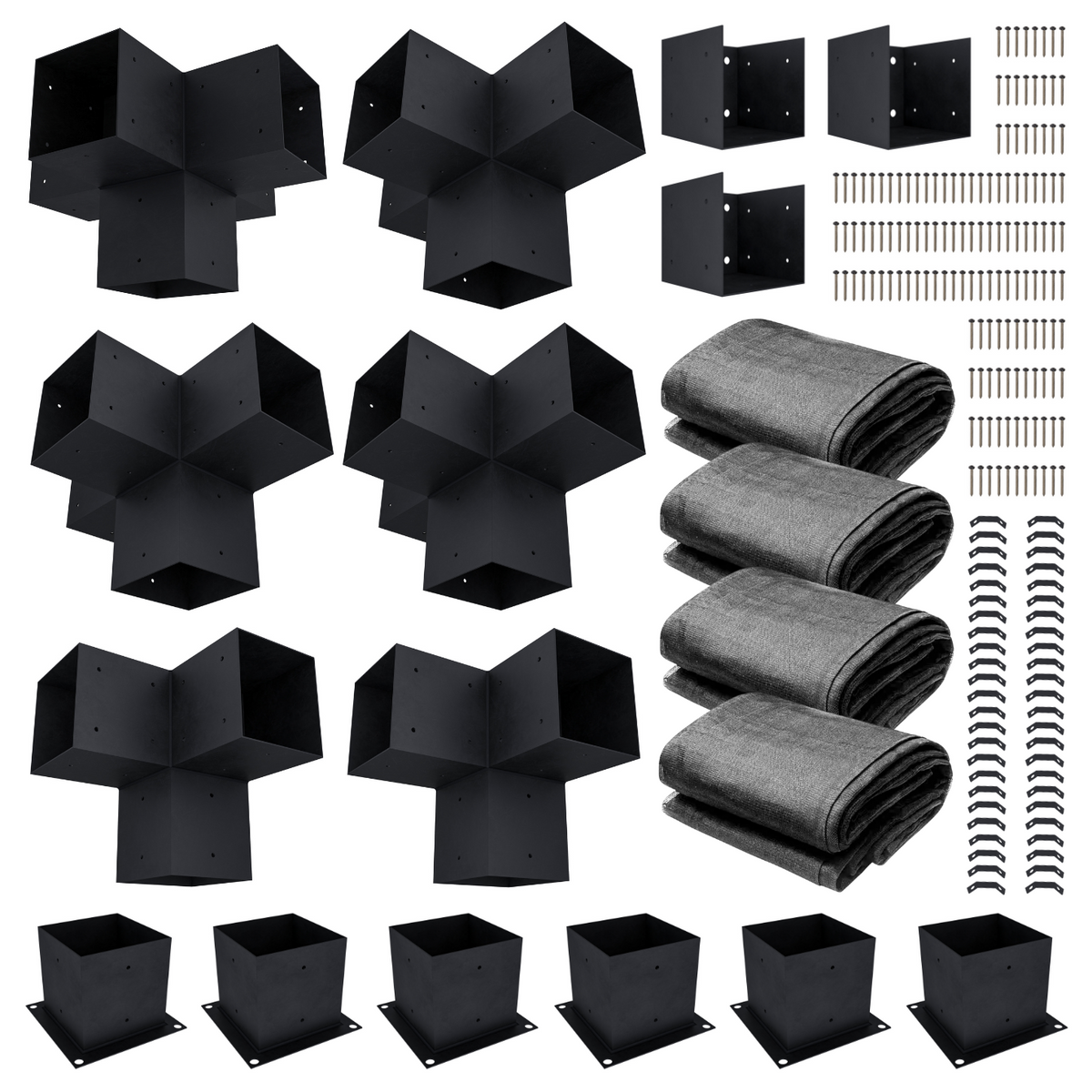

| Kit Includes | 6 post base brackets, 3 wall mount brackets, 2 corner 3-arm brackets, 3 middle 4-arm brackets, 1 central 5-arm bracket, 4 shade canopies with mounting brackets, stainless steel #12 wood screws |
| Not Included | Lumber and anchoring hardware (purchased locally) |
| Canopy Material | 180 GSM high-density polyethylene (HDPE) knitted fabric, fade-resistant |
| Canopy Sizes | 8' x 8', 8' x 10', 8' x 12', 10' x 10', 10' x 12', or 12' x 12' (canopies measure 4 inches shorter than indicated to allow room for mounts and straps) |
| Bracket Material | 12-gauge steel (6x6 size) or 14-gauge steel (4x4 size), laser-cut and laser-welded, weather coating, pre-drilled holes |
| Warranty | 5-year warranty on brackets; 1-year warranty on shade canopies |
| Ships From | Boise, Idaho |
Ideal For
- Homeowners building a pergola attached to the house over a patio or deck
- DIY builders who want shade included in the kit rather than added later
- Large patios that suit a full 24' x 24' footprint
- Builders choosing between standard 4x4 and heavier 6x6 lumber
Important Information
Lumber and anchoring hardware are not included and will need to be purchased locally. The stainless steel #12 wood screws are included in the kit.
Canopies measure 4 inches shorter than their indicated size to allow room for mounts and straps. Anchor the post base brackets to a solid foundation and the wall mount brackets to the house structure. Check local building codes and permit requirements for attached structures before you build.
Frequently Asked Questions
Is lumber included in this kit?
No. Lumber and anchoring hardware are purchased locally. The kit includes all of the brackets listed in the specifications, 4 shade canopies with mounting brackets, and the stainless steel #12 wood screws.
What size pergola can I build with this kit?
The kit builds an attached pergola in a 4-block layout with 6 posts, at any size up to 24' x 24'.
What sizes do the canopies come in?
Canopy sizes are 8' x 8', 8' x 10', 8' x 12', 10' x 10', 10' x 12', and 12' x 12'. The canopies actually measure 4 inches shorter than indicated, to allow room for the mounts and straps.
What are the canopies made of?
The canopies are a fade-resistant 180 GSM high-density polyethylene (HDPE) knitted fabric. They block up to 95% of UV rays and are semi-permeable, which helps prevent rain from pooling on top.
Are the brackets and canopies covered by a warranty?
Yes. The brackets are backed by a 5-year warranty and the shade canopies by a 1-year warranty.
If your patio needs shade at full size, in a structure that grows out of the house itself, this kit supplies the hardware and the canopies. Pick your bracket and canopy sizes and start framing.
