Zen Pergolas DIY Attached Pergola Bracket Kit with Slatted Roof | Steel Brackets for 4x4 or 6x6 Lumber | Up to 24' x 24'
Zen Pergolas DIY Attached Pergola Bracket Kit with Slatted Roof | Steel Brackets for 4x4 or 6x6 Lumber | Up to 24' x 24'
Couldn't load pickup availability
Add White-Glove Backyard Placement — a local two-person crew uncrates your item, carries it to your spot, places it, and hauls the packaging away. Placement $279 · Placement + Assembly $489. Hot tubs and saunas are quoted individually.
Share

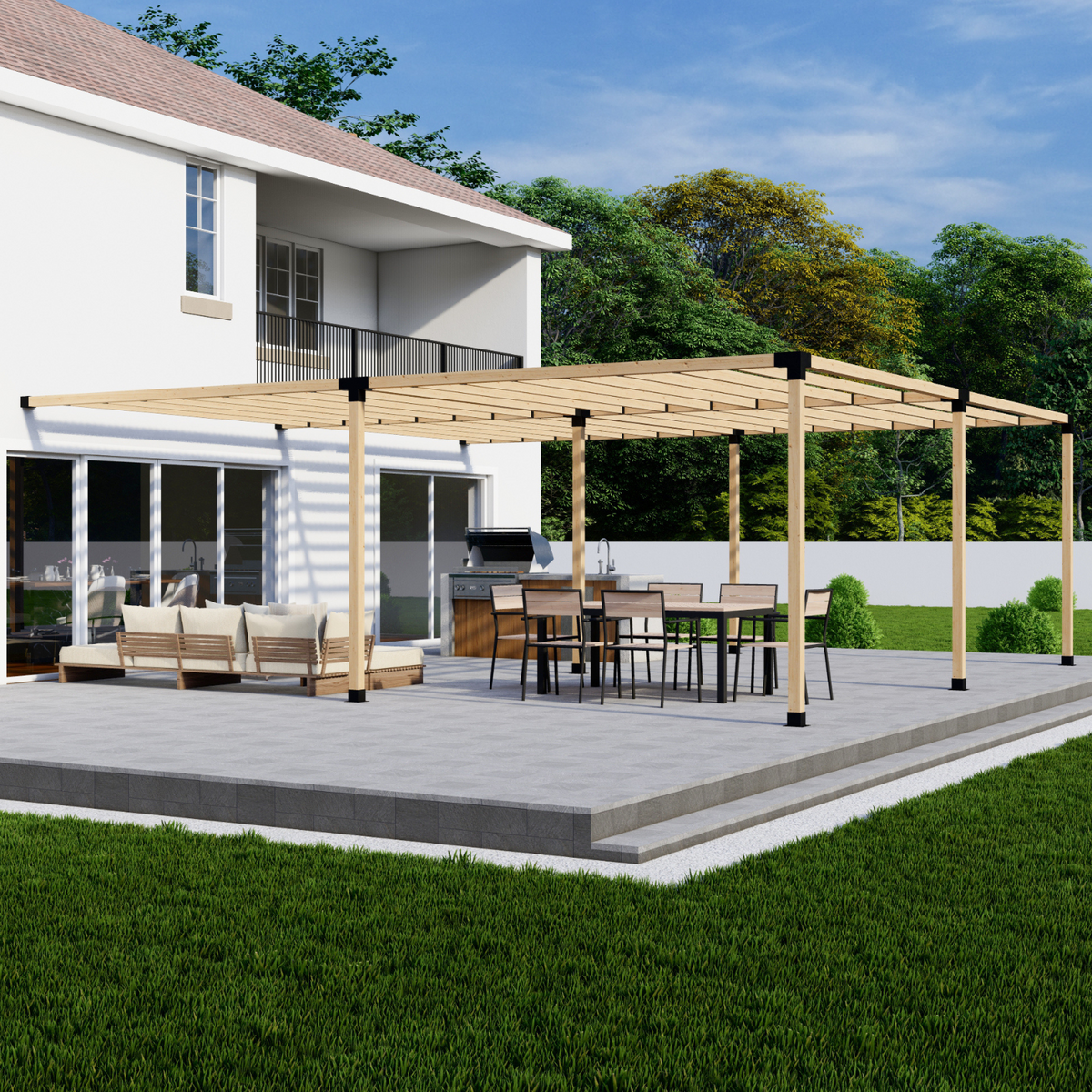

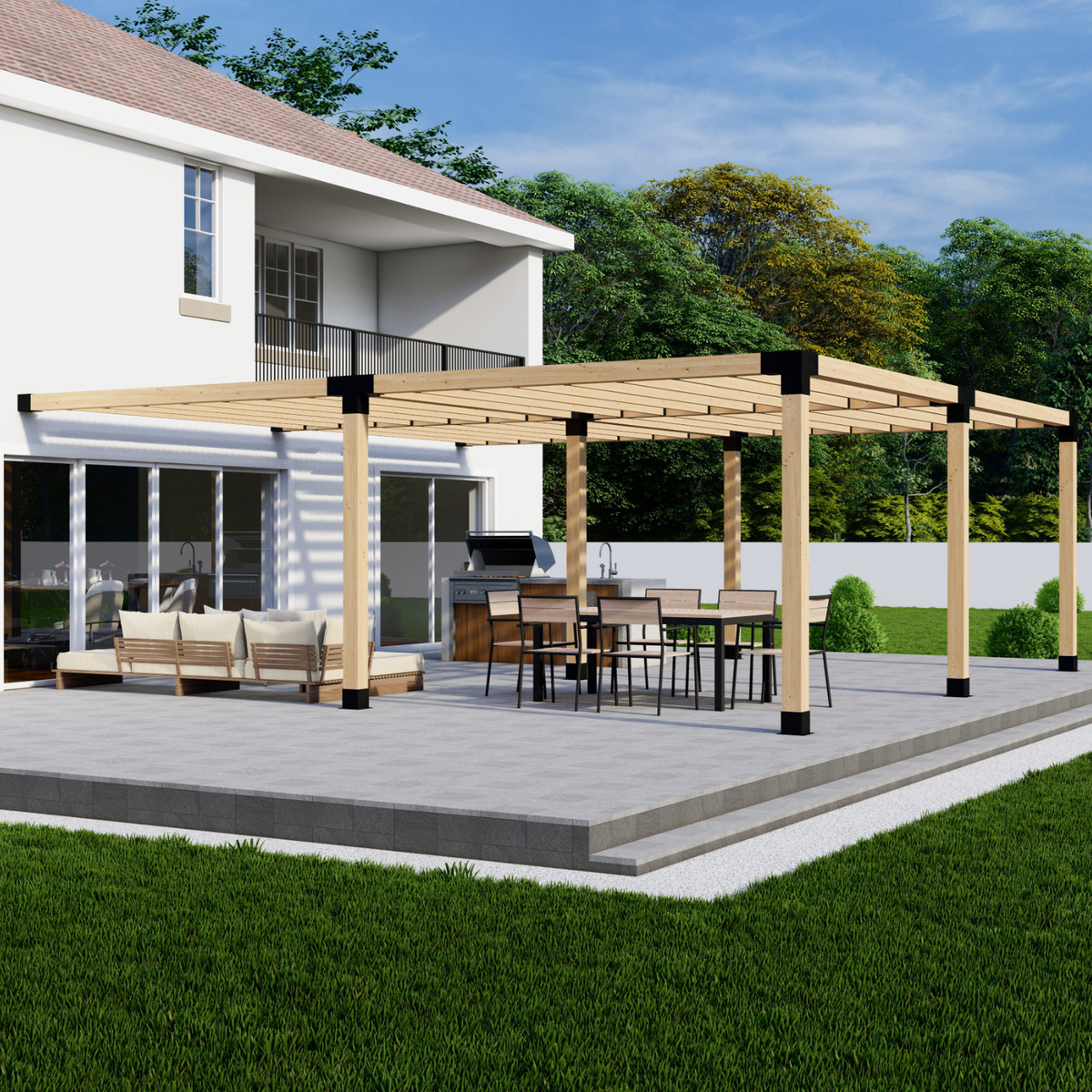

Build a pergola that ties straight into your house, topped with a slatted roof you can tune for sun or shade. This Zen Pergolas bracket kit builds an attached layout on 6 posts across 4 blocks at any size up to 24' x 24', with inline roof slats that run straight or angled. Choose brackets for 4x4 or 6x6 lumber and supply your own wood.
Why Customers Choose This Product
- Complete bracket kit for a 4-block attached pergola with 6 posts

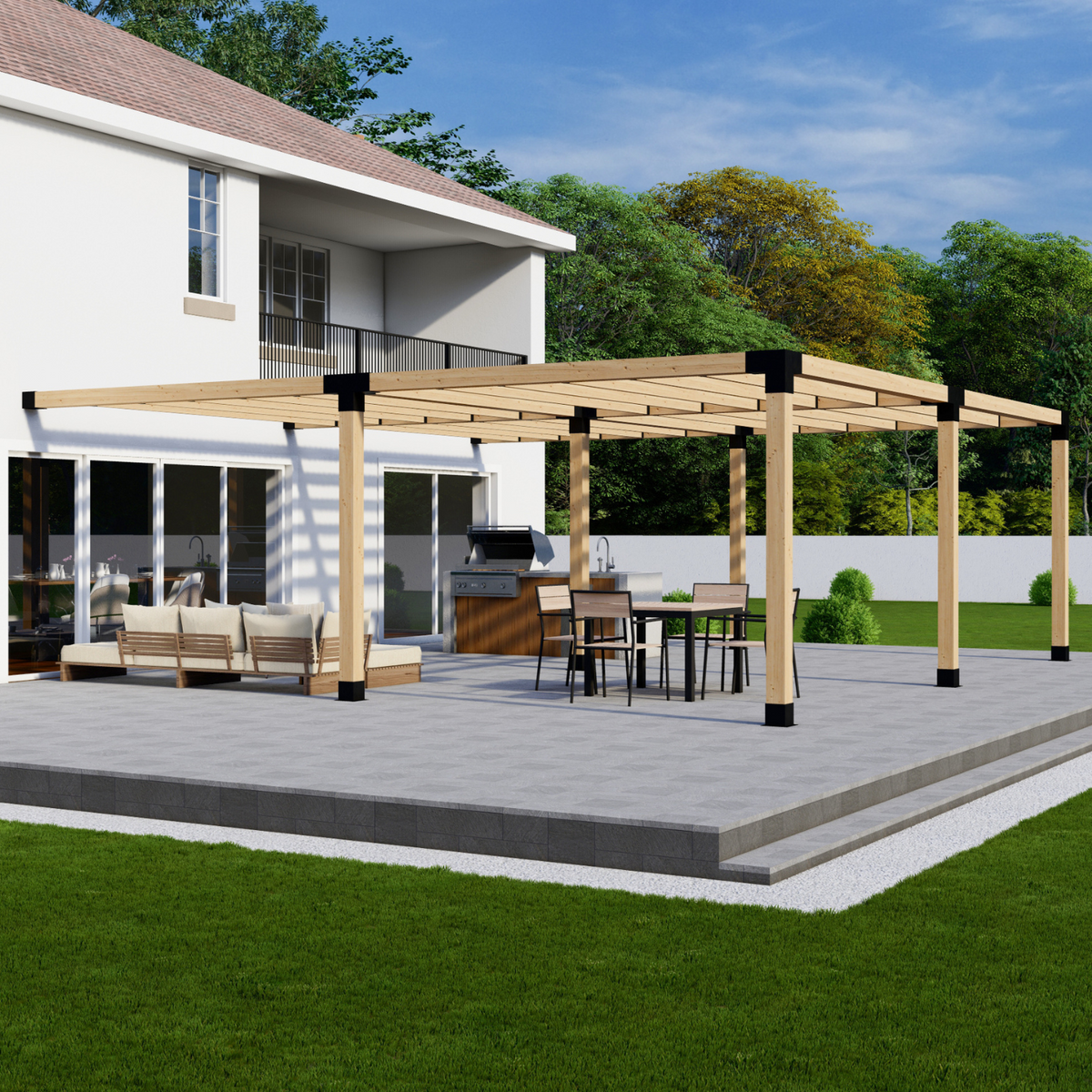

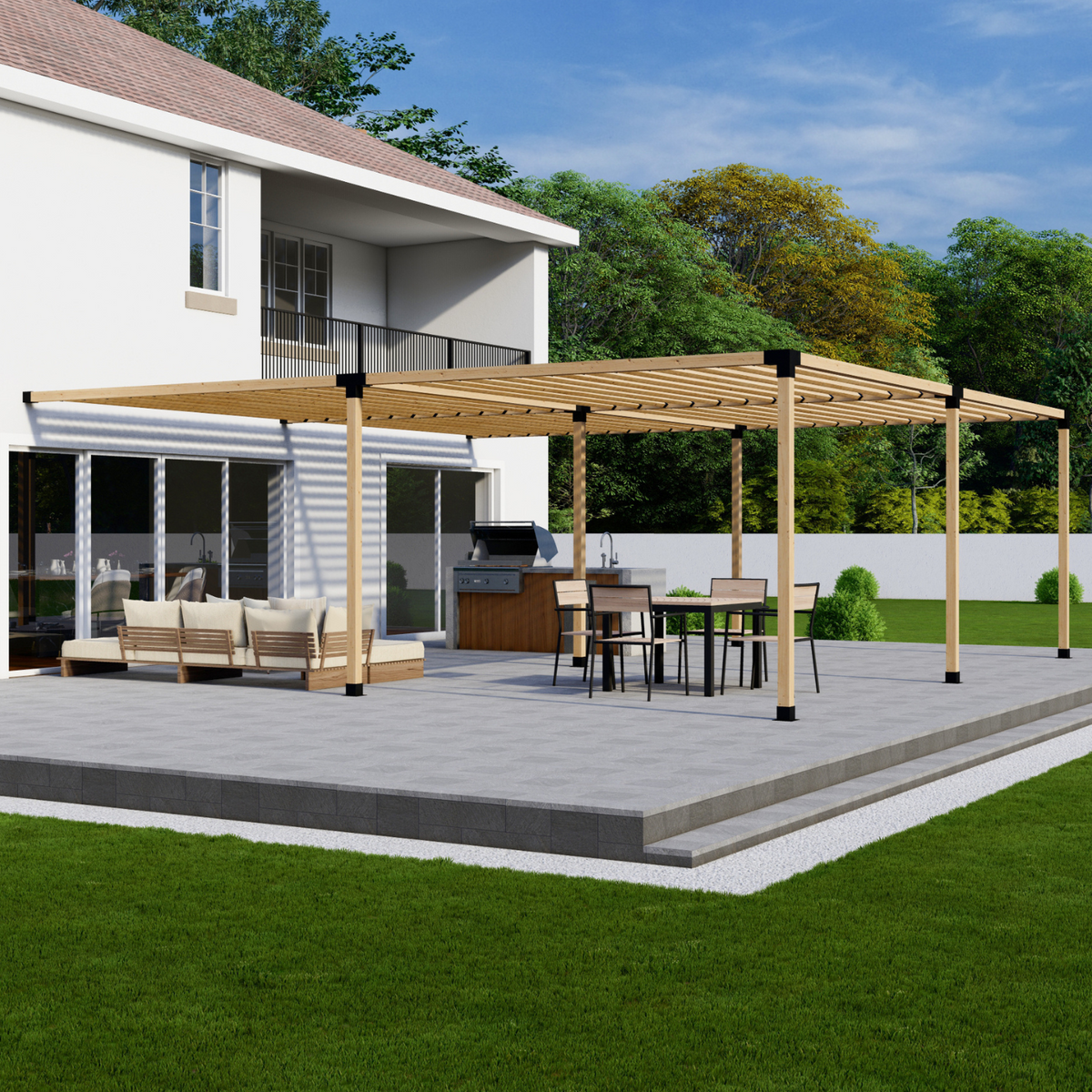

- Inline roof slats that install straight or angled to tune sun and shade
- Your choice of 4x4 and 2x4 or 6x6 and 2x6 bracket sizes
- Stainless steel #12 wood screws included in the kit
- Laser-cut, laser-welded steel with a weather coating and pre-drilled holes
- Backed by a 5-year warranty on all brackets
Product Highlights
Attached 4-Block Layout
Three wall mount brackets tie the pergola to the house while 6 posts carry the outer structure, at any footprint up to 24' x 24'.
Inline Slatted Roof
The kit includes 56 roof slat brackets. Run the slats straight for even shade lines, or angled to change how light falls through the roof.
Two Lumber Sizes
Order the kit for 4x4 posts with 2x4 slats, or step up to 6x6 posts with 2x6 slats for a heavier build.
Steel, Cut and Welded Precisely
Brackets are laser-cut and laser-welded, made with 12-gauge steel in the 6x6 size or 14-gauge steel in the other sizes, with a weather coating for outdoor conditions.
Specifications
| Brand | Zen Pergolas |
|---|---|
| Product Type | DIY pergola bracket kit |
| Pergola Type | Attached to house, 6 posts |
| Layout | 4 blocks |
| Maximum Size | Any size up to 24' x 24' |
| Bracket Size Options | 4x4 and 2x4, or 6x6 and 2x6 |
| Roof Style | Inline roof slats (straight or angled) |

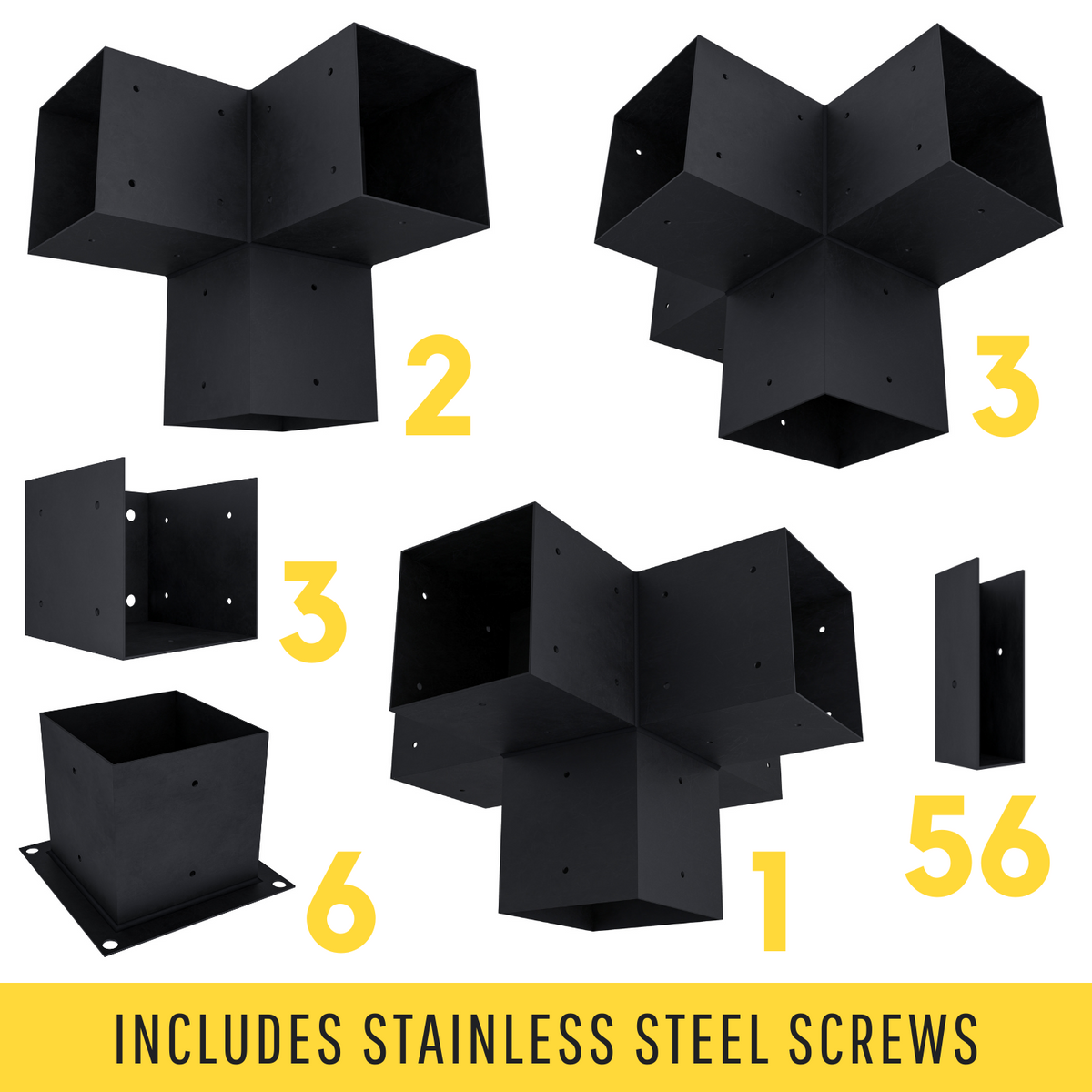

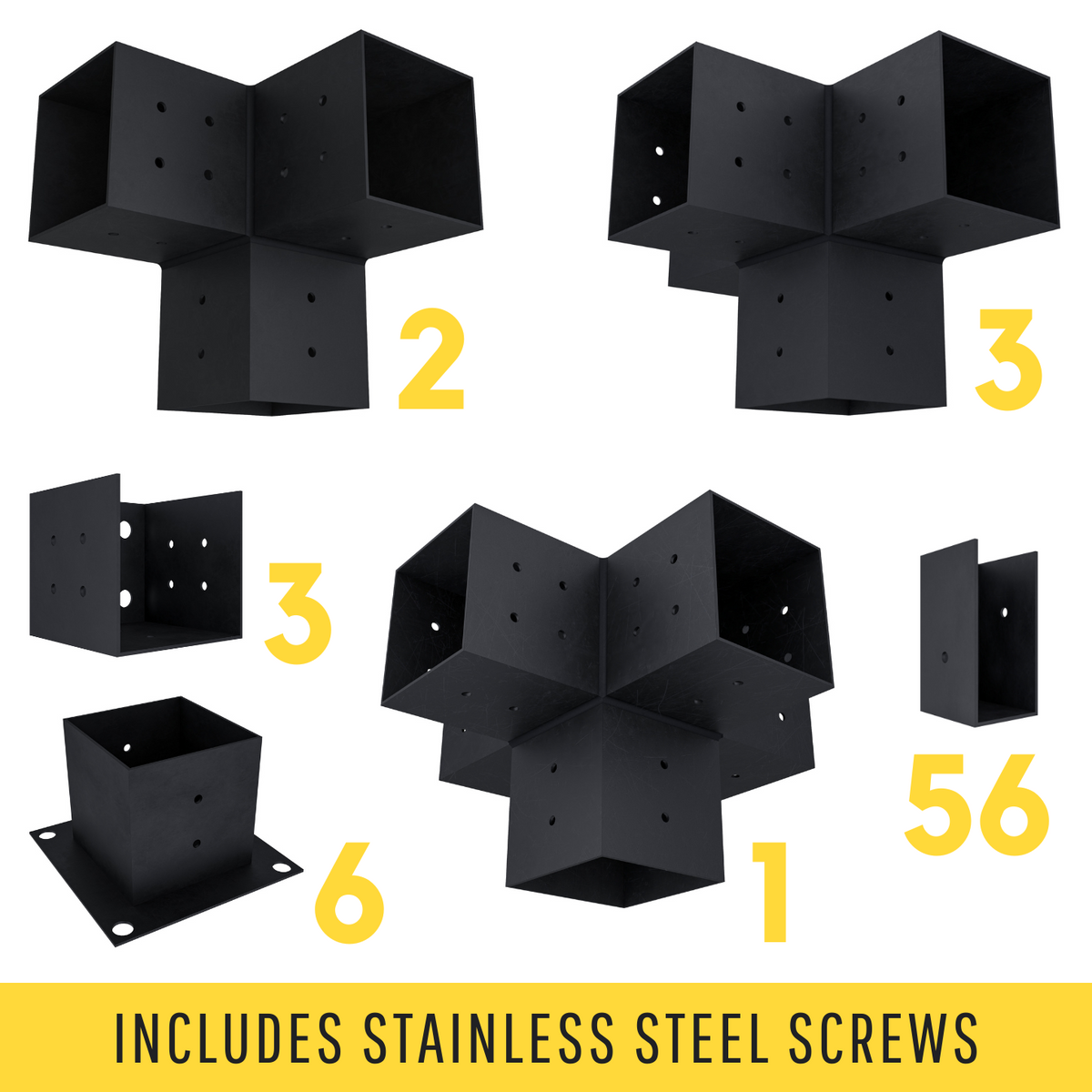

| Kit Includes | 6 post base brackets, 3 wall mount brackets, 2 corner 3-arm brackets, 3 middle 4-arm brackets, 1 central 5-arm bracket, 56 roof slat brackets, stainless steel #12 wood screws |
| Not Included | Lumber and anchoring hardware (purchased locally) |
| Bracket Material | 12-gauge steel (6x6 size) or 14-gauge steel (all other sizes), laser-cut and laser-welded, weather coating, pre-drilled holes |
| Warranty | 5-year warranty on all brackets |
| Ships From | Boise, Idaho |
Ideal For
- Homeowners building a pergola attached to the house over a patio or deck
- DIY builders who want adjustable shade from a slatted roof at full 24' x 24' size
- Projects that need the structure tied into the house wall
- Builders choosing between standard 4x4 and heavier 6x6 lumber
Important Information
Lumber and anchoring hardware are not included and will need to be purchased locally. The stainless steel #12 wood screws are included in the kit.
Anchor the post base brackets to a solid foundation and the wall mount brackets to the house structure. Check local building codes and permit requirements for attached structures before you build.
Frequently Asked Questions
Is lumber included in this kit?
No. Lumber and anchoring hardware are purchased locally. The kit includes all of the brackets listed in the specifications and the stainless steel #12 wood screws.
What size pergola can I build with this kit?
The kit builds an attached pergola in a 4-block layout with 6 posts, at any size up to 24' x 24'.
How do the roof slats work?
The slats run inline across the roof and can be installed straight or angled, which changes the shade pattern under the pergola. The kit includes 56 roof slat brackets.
Which bracket size should I choose?
Choose 4x4 and 2x4 brackets if your posts are 4x4 and your slats are 2x4, or 6x6 and 2x6 brackets for 6x6 posts and 2x6 slats. The brackets are made to fit these common lumber sizes.
Are the brackets covered by a warranty?
Yes. All brackets are backed by a 5-year warranty.
If your patio needs shade you can tune, in a structure that grows out of the house itself, this kit supplies the hardware at full size. Pick your lumber size and start framing.
