Build a pergola that ties straight into your house with this complete bracket kit from Zen Pergolas. The attached layout runs on 6 posts across 4 blocks at any size up to 24' x 24', with traditional rafters across the roof beams and optional overhangs. Choose brackets for 4x4 or 6x6 lumber, add your own wood, and the steel connectors do the structural joining for you.
Why Customers Choose This Product
- Complete bracket kit for a 4-block attached pergola with 6 posts
- Traditional roof rafters with optional overhangs for a classic pergola profile
- Your choice of 4x4 and 2x4 or 6x6 and 2x6 bracket sizes
- Stainless steel #12 wood screws included in the kit
- Laser-cut, laser-welded steel with a weather coating and pre-drilled holes
- Backed by a 5-year warranty on all brackets
Product Highlights
Attached 4-Block Layout
Three wall mount brackets tie the pergola to the house while 6 posts carry the outer structure, at any footprint up to 24' x 24'.
Traditional Rafter Roof
The kit includes 42 roof rafter brackets, so rafters sit atop the roof beams in the traditional style, with optional overhangs.
Two Lumber Sizes
Order the kit for 4x4 posts with 2x4 rafters, or step up to 6x6 posts with 2x6 rafters for a heavier build.
Steel, Cut and Welded Precisely
Brackets are laser-cut and laser-welded, made with 12-gauge steel in the 6x6 size or 14-gauge steel in the other sizes, with a weather coating for outdoor conditions.
Specifications
| Brand | Zen Pergolas |
|---|---|
| Product Type | DIY pergola bracket kit |
| Pergola Type | Attached to house, 6 posts |
| Layout | 4 blocks |
| Maximum Size | Any size up to 24' x 24' |
| Bracket Size Options | 4x4 and 2x4, or 6x6 and 2x6 |
| Roof Style | Traditional rafters atop the roof beams, with optional overhangs |

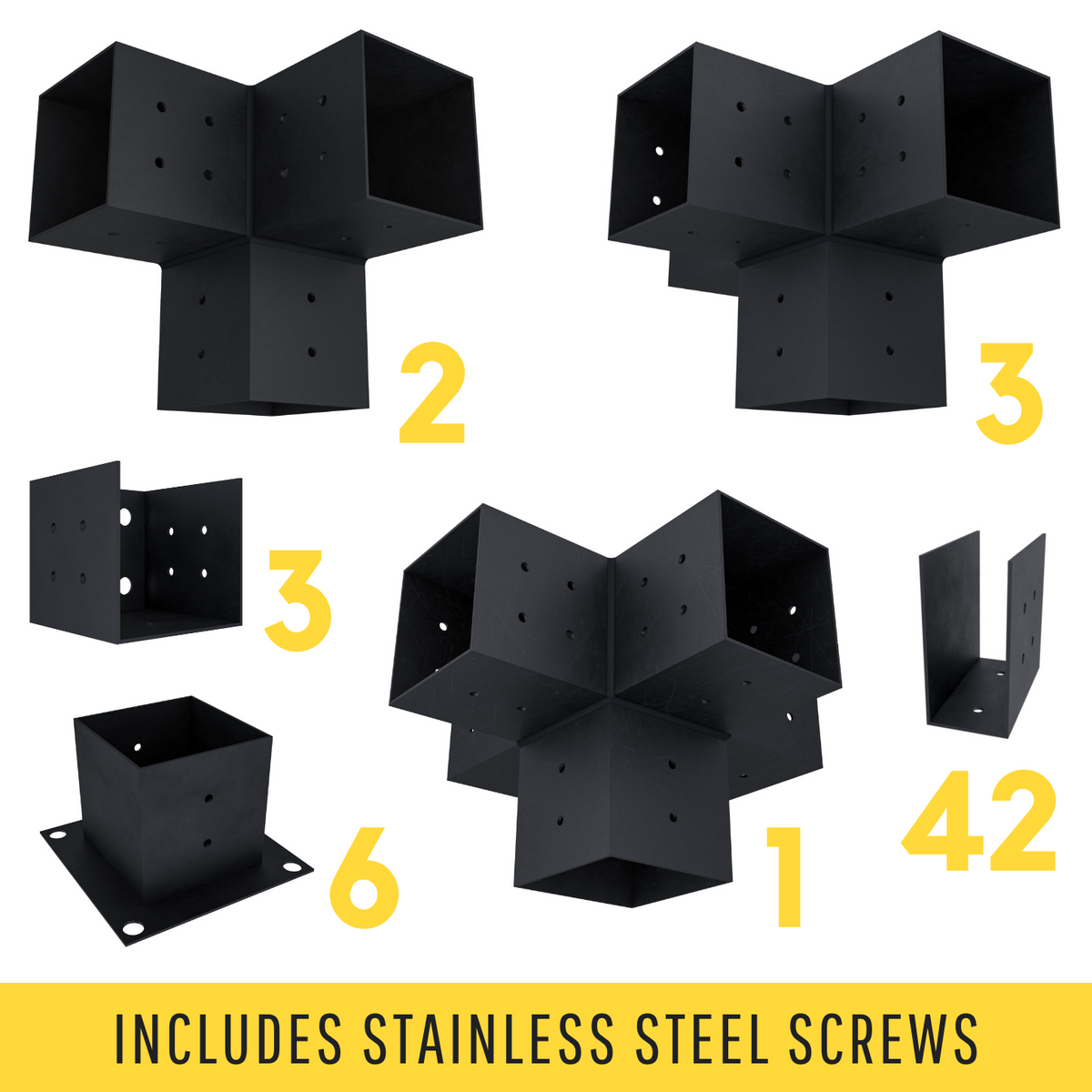

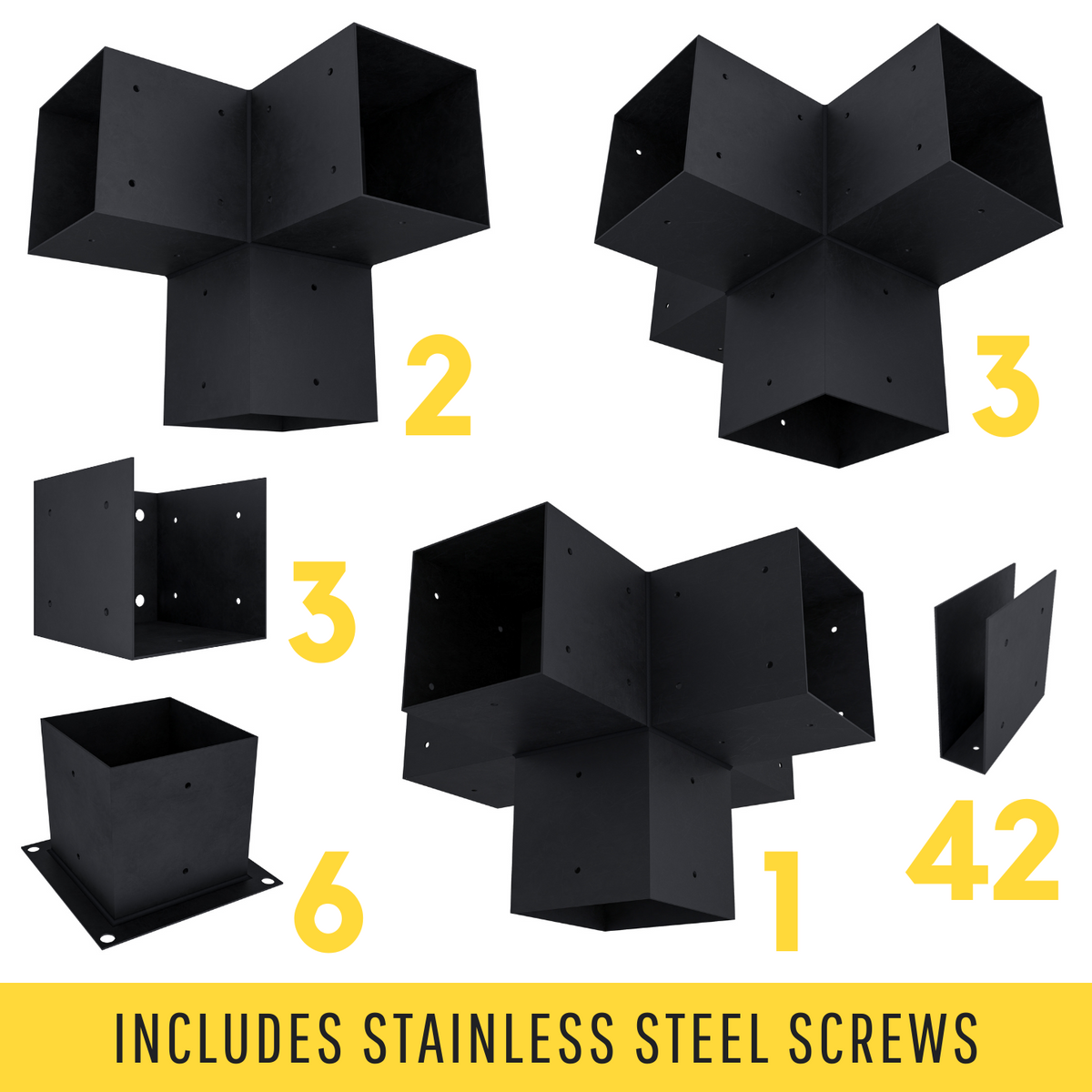

| Kit Includes | 6 post base brackets, 3 wall mount brackets, 2 corner 3-arm brackets, 3 middle 4-arm brackets, 1 central 5-arm bracket, 42 roof rafter brackets, stainless steel #12 wood screws |
| Not Included | Lumber and anchoring hardware (purchased locally) |
| Bracket Material | 12-gauge steel (6x6 size) or 14-gauge steel (all other sizes), laser-cut and laser-welded, weather coating, pre-drilled holes |
| Warranty | 5-year warranty on all brackets |
| Ships From | Boise, Idaho |
Ideal For
- Homeowners building a pergola attached to the house over a patio or deck
- DIY builders who want steel connectors sized for a large 24' x 24' footprint
- Projects that call for a traditional rafter roof with overhangs
- Builders choosing between standard 4x4 and heavier 6x6 lumber
Important Information
Lumber and anchoring hardware are not included and will need to be purchased locally. The stainless steel #12 wood screws are included in the kit.
Anchor the post base brackets to a solid foundation and the wall mount brackets to the house structure. Check local building codes and permit requirements for attached structures before you build.
Frequently Asked Questions
Is lumber included in this kit?
No. Lumber and anchoring hardware are purchased locally. The kit includes all of the brackets listed in the specifications and the stainless steel #12 wood screws.
What size pergola can I build with this kit?
The kit builds an attached pergola in a 4-block layout with 6 posts, at any size up to 24' x 24'.
Which bracket size should I choose?
Choose 4x4 and 2x4 brackets if your posts are 4x4 and your rafters are 2x4, or 6x6 and 2x6 brackets for 6x6 posts and 2x6 rafters. The brackets are made to fit these common lumber sizes.
What are the brackets made of?
The brackets are laser-cut and laser-welded steel: 12-gauge in the 6x6 size and 14-gauge in the other sizes, with a weather coating and pre-drilled holes for securing the wood.
Are the brackets covered by a warranty?
Yes. All brackets are backed by a 5-year warranty.
If your patio needs a permanent shade structure that grows out of the house itself, this kit supplies the hardware to build it at full size. Pick your lumber size and start framing.
